Polytron HG30115 1Ghz, 0-30dB, 4-65ARP25dB, Eq, 115dBµV

Polytron HG30115 1Ghz,0-30dB,4-65ARP25dB,Eq,115dBµV
Op voorraad
SKU
POL.1452487
€ 86,95 € 71,86

Indien op voorraad, binnen 2 werkdagen verzonden

12 maanden garantie op al onze producten

14 dagen bedenktijd na ontvangst van bestelling

Polytron HG30115 1Ghz,0-30dB,4-65ARP25dB,Eq,115dBµV

30 dB / 115 dBµV

1 GHz home distribution amplifier with built-in return path, settings via potentiometer

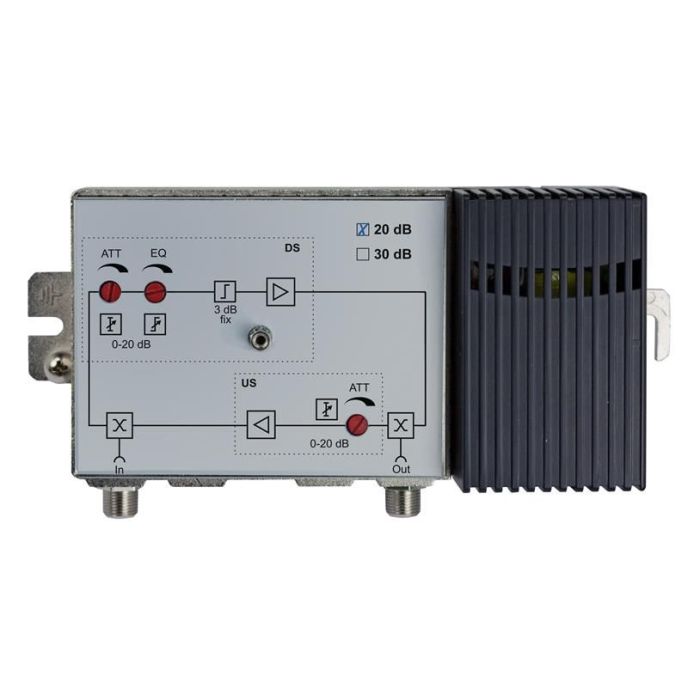

The HG 30115 is a flexible home distribution amplifier with a frequency range up to 1 GHz in POLY­TRON’s best quality.
The reliable power supply and the valuable housing ensure a long lifetime.

  • settings via potentiometer
  • interstage equalization 3 dB fix
  • built-in return path
  • die-cast housing
  • interruption-free setting
  • Class A
  • certified by German cable operator KDG



Technische Daten / technical data

Typ / Type

HG 30115

Artikel-Nr. / Article no.

1452487

Frequenzbereich / Frequency range

85–1006 MHz

Verstärkung / Gain

30 dB

Pegelsteller / Attenuator

0–20 dB

Entzerrer / Equalizer

0–20 dB

Interstage Vorentzerrung / Interstage pre equalization

3 dB

Rauschmaß / Noise figure

≤ 6,5 dB

Ausgangspegel / Output level



Cenelec 42 CTB / CSO flat

98 dBµV

IMA3 60 dB

115 dBµV

Rückkanal / return path



Rückkanalfrequenz / Return path freq.

5–65 MHz

Rückkanalverstärkung / Gain return path

25 dB

Pegelsteller / Attenuator

0-20 dB

Ausgangspegel / Output level max.

IMA3 60 dB: 115 dBµV

Spannungsversorgung/Operating voltage

230 V~

Leistungsaufnahme / Power consumption

4,5 W

Maße (BxHxT) / Dimensions (WxHxD)

174 x 80 x 47 mm

Certified by German cable operator

KDG B(3.1)




Meer informatie
Merk Polytron
